Angle bars

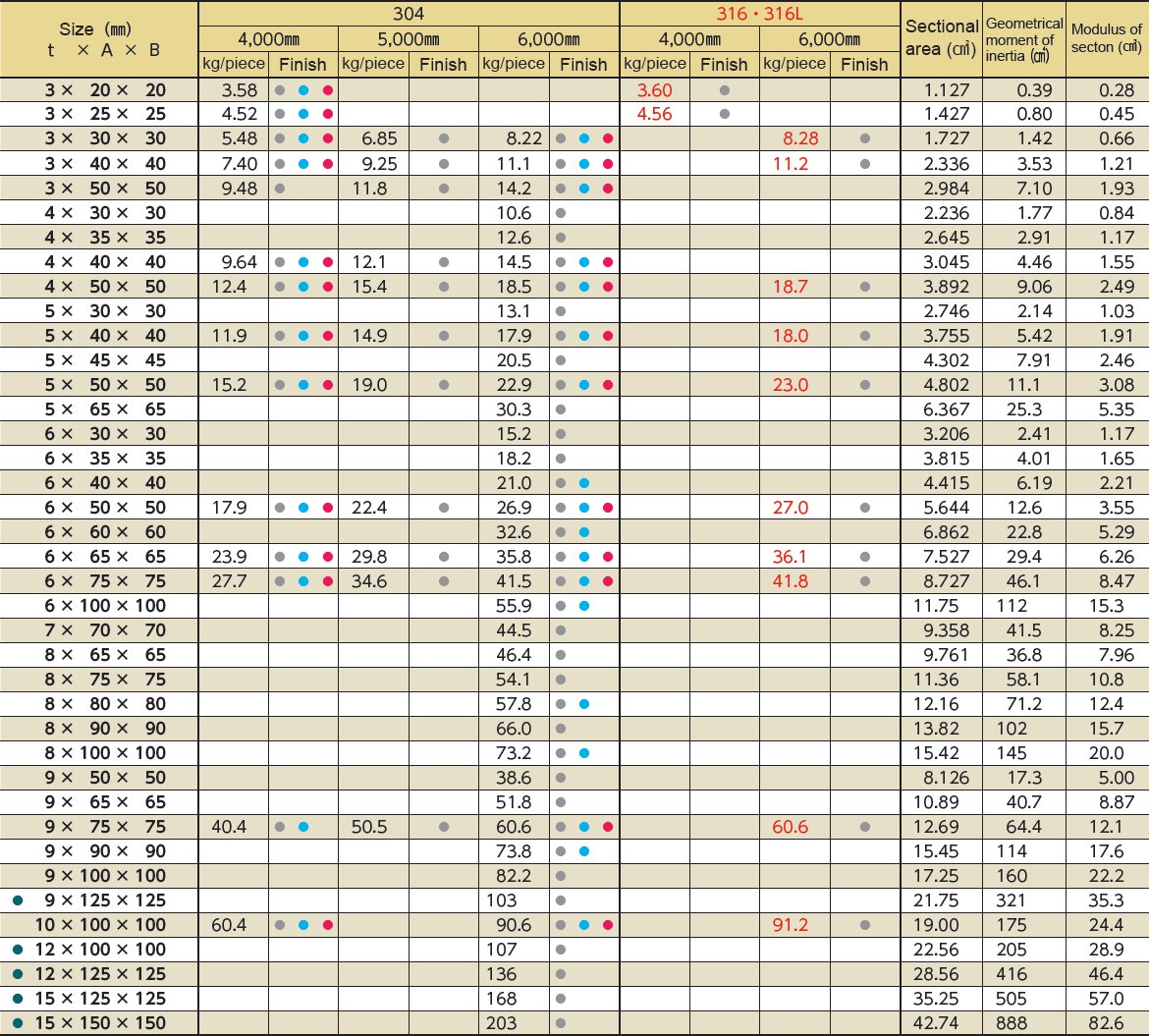

Hot-rolled angle bars SUS304 / 316 / 316L

Hot-rolled angle bars SUS304 / 316 / 316L
  • :It is ordered products. :Acid-cleaned :HL :#400 on outside

Hot-Rolled Angle Bars

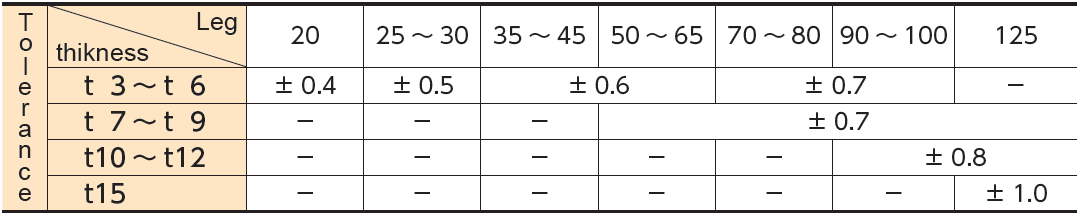

Tolerance on leg

(Unit:mm)
Tolerance on leg

Tolerance on thikness

(Unit:mm)
Tolerance on thikness
(Unit:mm)
Tolerance on thikness

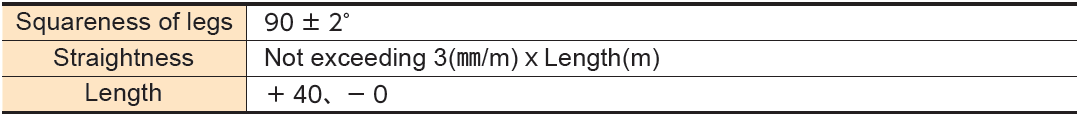

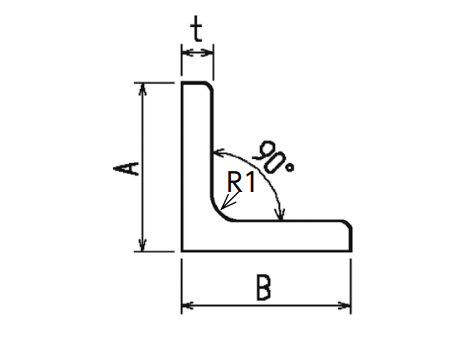

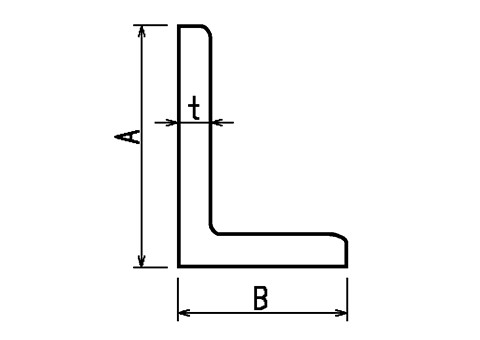

Dimensional drawing

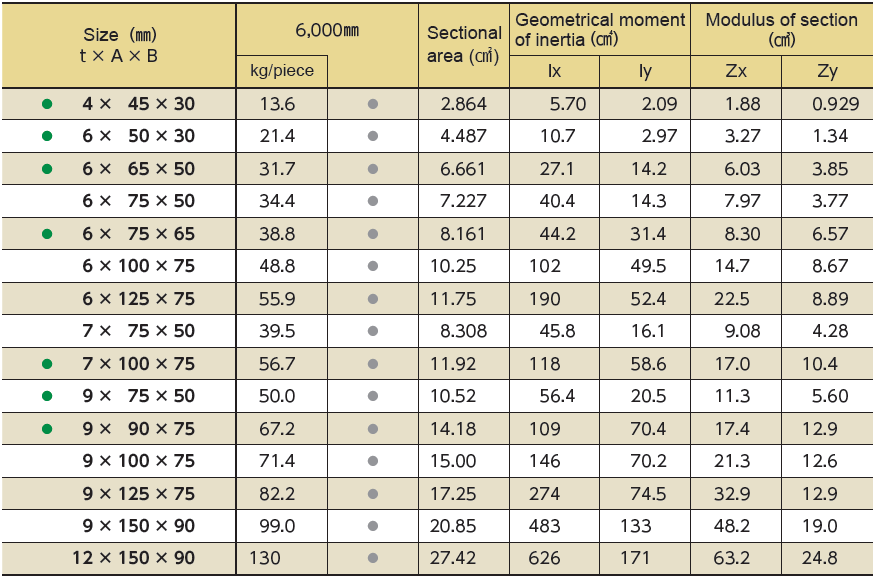

Scalene angle bars SUS304

Scalene angle bars SUS304
  • :Cut one leg of equal-leg angle bars :Acid-cleaned

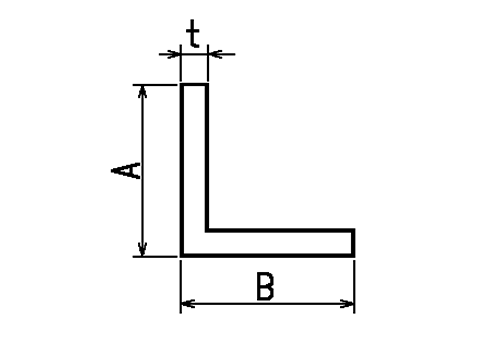

Dimensional drawing

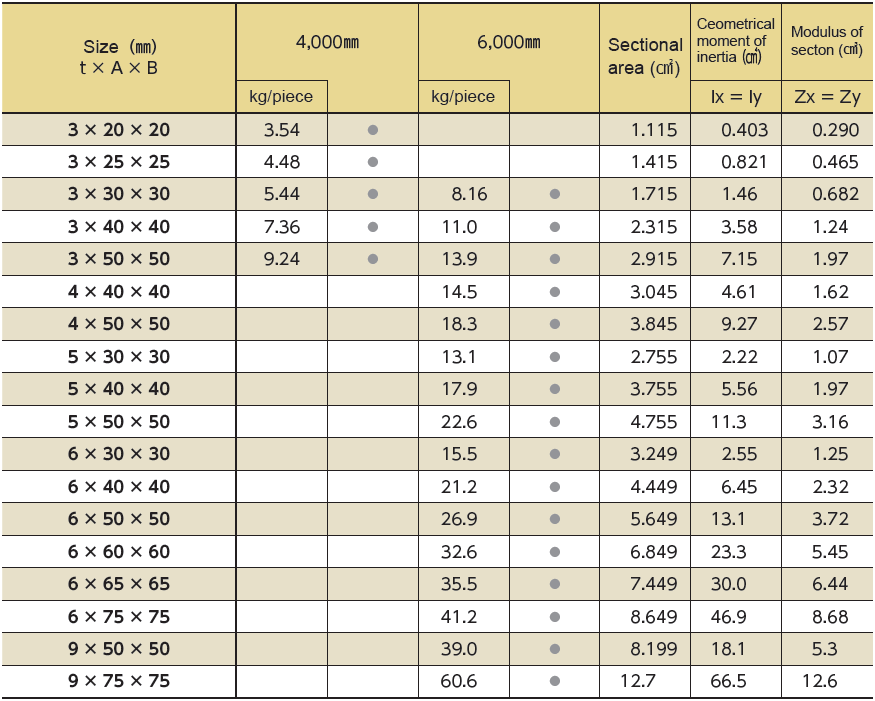

Exact cold-rolled angle bars SUS304

Exact cold-rolled angle bars SUS304
  • :Cold-rolled

Dimensional drawing

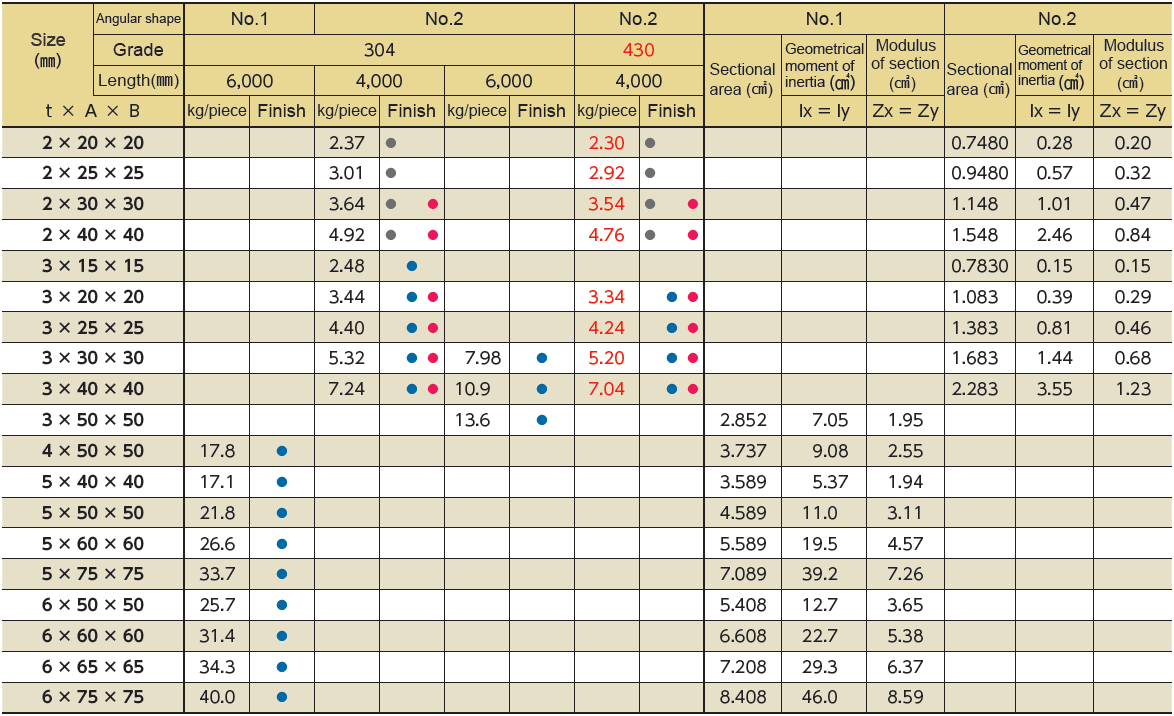

Forming angle bars SUS304 / 430

Forming angle bars SUS304 / 430
  • :2B :CG :#400 on outside

Forming Angle Bars

Tolerance on leg

(Unit:mm)
Tolerance on leg

Tolerance on thikness

(Unit:mm)
Tolerance on thikness
(Unit:mm)
Tolerance on thikness
  • - R in the above figure shows the radius of curvature in the corner part.
    (1) R = 2.0t
    (2) R = 1.2t

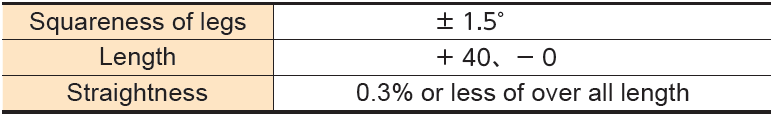

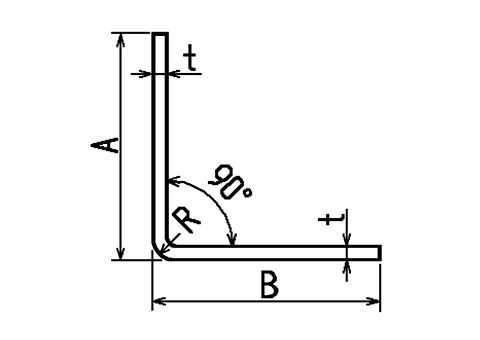

Dimensional drawing

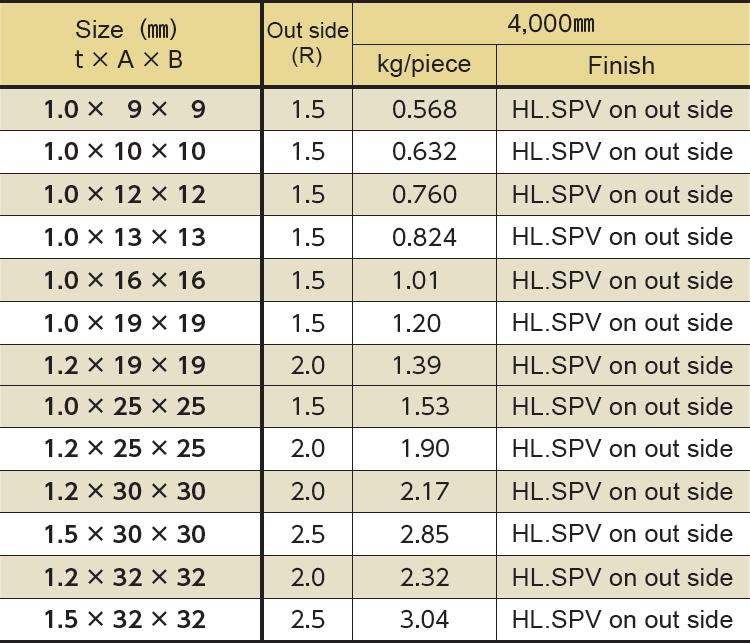

Small forming angle bars SUS304

Small forming angle bars SUS304
