Stainless steel tubes for piping and general piping

Stainless steel pipe for piping (JIS G 3459) used for piping for petroleum, chemical, power, paper, water treatment equipment, fuel cell etc., welded large diameter stainless steel pipe for piping (JIS G 3468), piping for indoor water supply There is a stainless steel pipe for general piping (JIS G 3448) to be used.

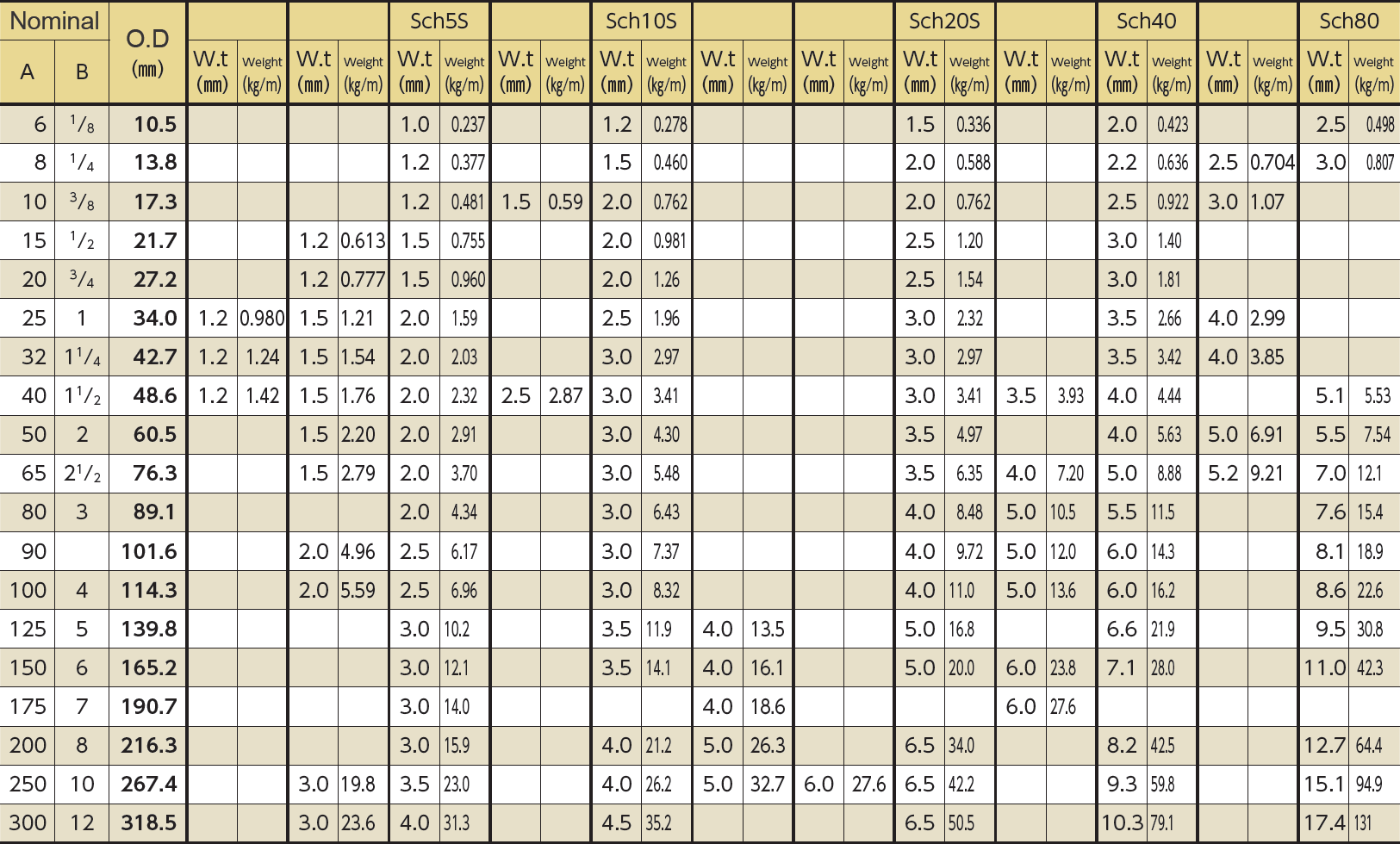

Stainless steel pipes (JIS G 3459) SUS304 / 304L / 316 / 316L

(Unit:kg/m)
Stainless steel pipes (JIS G 3459) SUS304 / 304L / 316 / 316L Stainless steel pipes (JIS G 3459) SUS304 / 304L / 316 / 316L

A figure in this table represents the weight per meter (kg/m) of the SUS304 and SUS304L.
For the SUS316 and SUS316L, multiply the figure in this table by 1.0064.
The standard length is 4m. (There is also a length of 6m so please inquire.)
Some also have SUS304L, 316, 316L.

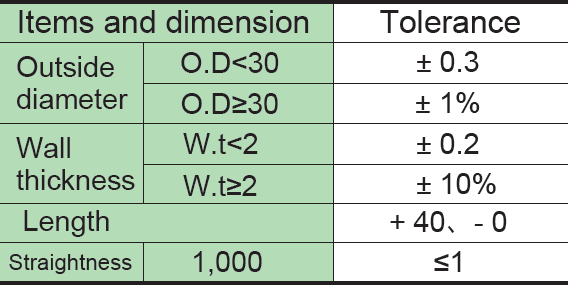

Dimensional Tolerance

(Unit:mm)
Dimensional Tolerance

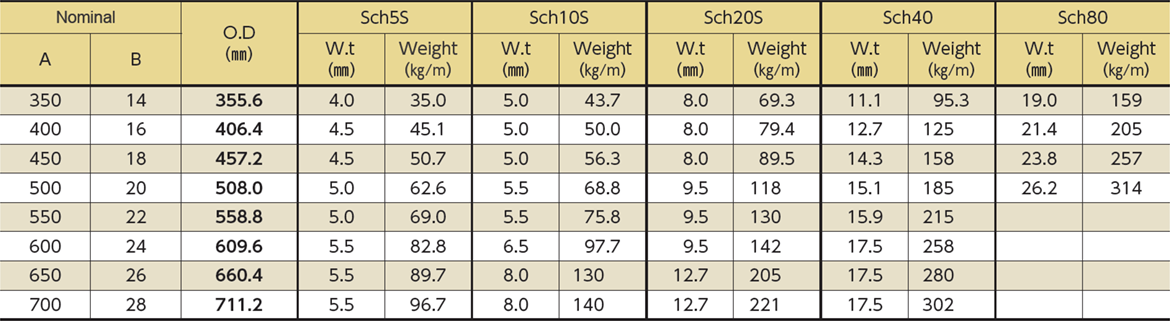

Large diameter welded stainless steel pipes (JIS G 3468) SUS304 / SUS304L / SUS316 / SUS316L

(Unit:kg/m)
Large diameter welded stainless steel pipes SUS304/SUS304L/SUS316/SUS316L (JIS G 3468)

A figure in this table represents the weight per meter (kg/m) of the SUS304 and SSUS304L.
For the SUS316 and SUS316L, multiply the figure in this table by 1.0064.
The standard length is 4m. (There is also a length of 6m so please inquire.)
Some also have SUS304L, 316, 316L.

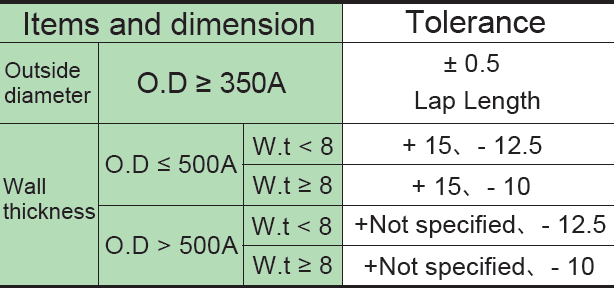

Dimensional Tolerance

(Unit:mm)
Dimensional Tolerance

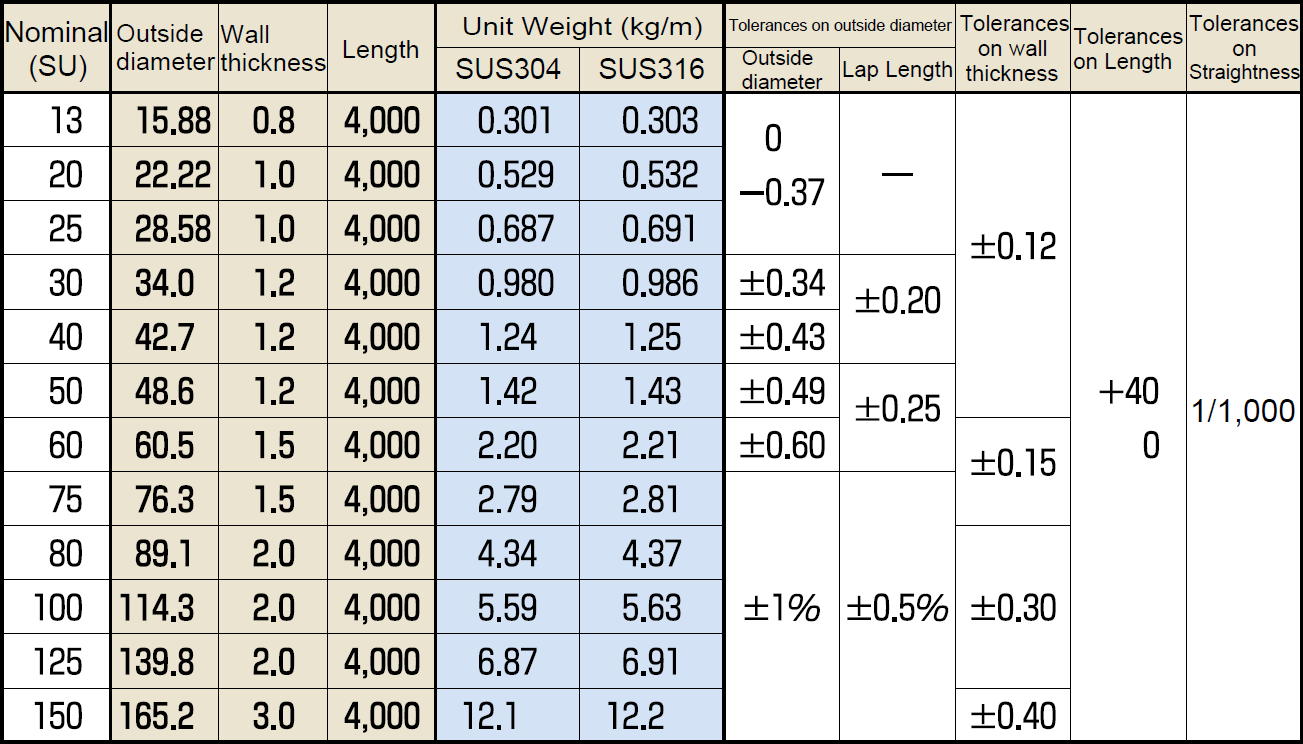

Light gauge stainless steel tubes for ordinary piping (JIS G 3448) SUS304

(Unit:mm)
Light gauge stainless steel tubes for ordinary piping (JIS G 3448) SUS304
  • - The "Allowance-Outer diameter" column in the above table shows an allowance for the measured value of the piping diameter.
  • - The "Allowance-Circumference" column in the above table shows an allowance for the value by which the measured value of the piping circumference is divided by pi 3.1416.

Examples

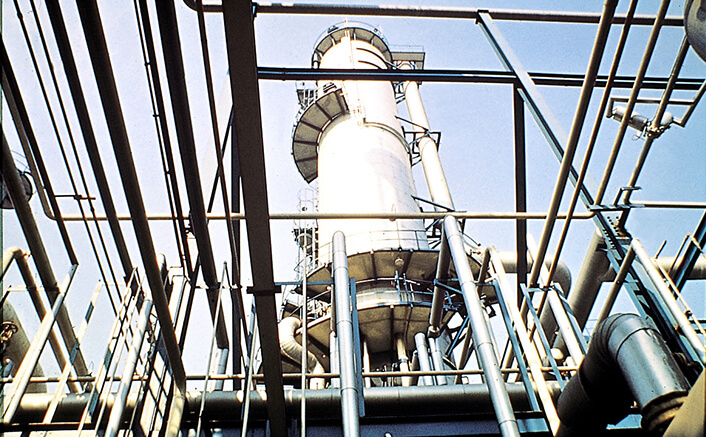

  • Plumbing of Chemical Plants
    Plumbing of Chemical Plants

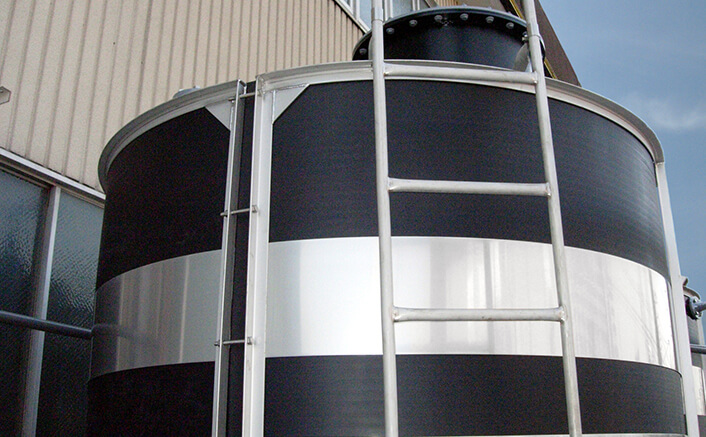

  • Storage Tank Parts
    Storage Tank Parts
