MORY INDUSTRIES INC.

Thin walled stainless steel tubes

It is used in various fields and industries where stainless steel characteristics such as automobiles and domestic electric appliances can be exhibited.

Major Grade for Products

SUS 304 / SUS 304L / SUS 321 / SUS 316 / SUS 316L / SUS 310S / 409L / SUS 430 / SUS 430LX / 439L / SUS 436L / 443CT / NCF800(Incoly800) / NCF600(Inconel600) / Titanium

Standard Product Sizes

(Unit:kg/m)
Standard Product Sizes

A figure in this table represents the weight per meter (kg/m) of the SUS304, SUS304L and SUS321.

  • - A size whose weight is indicated is a standard size for manufacturing.
  • - Please inquire about the length.

In addition to the above, we also provide piping rolls with the following outside diameters.

(Unit:mm)
In addition to the above, we also provide piping rolls with the following outside diameters.
  • - Please inquire about any size not listed.

Dimensional Tolerance

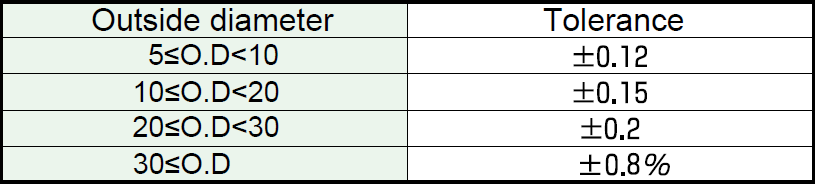

  • Tolerances on outside diameter

    (Unit:mm)
    Tolerances on outside diameter

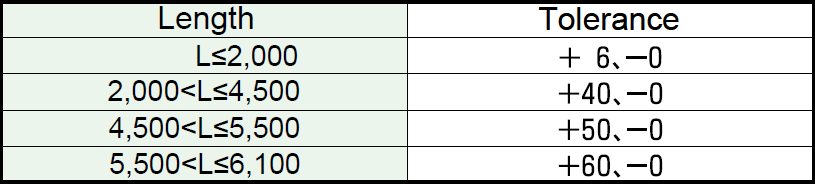

  • Tolerances on Length

    (Unit:mm)
    Tolerances on Length
  • Tolerances on wall thickness

    (Unit:mm)
    Tolerances on wall thickness
  • Straightness tolerance

    (Unit:mm)
    Straightness tolerance

Examples

  • Automotive Parts
    Automotive Parts
  • Electric Heater
    Electric Heater
  • Heat Exchanger
    Heat Exchanger
  • Needle
    Needle
