MORY INDUSTRIES INC.

Stainless-steel-clad tubes

Our stainless-steel-clad tubing duplex tubing manufactured by encasing welded carbon steel tubing In a very thin stainless steel shell.
This conserves costly stainless steel and results in a cost saving of 20 percent to 50 percent compared with solid stainless steel pipe.The low cost of this product has led to rapid growth in the use of clad tubing, Particularly for ornamental applications.
We have succeeded in further reducing production costs by developing a new device,the composite piping machine. This innovation has enabled us to establish ourselves as a leading producer of clad tubing.

Stainless-steel-clad tubes

MS Type

It is a cladding tube made by coating extremely thin stainless steel band steel on the outside and seam welding the overlapping part on the carbon steel pipe (inner pipe) for machine structural use. Although we are carrying out the polishing work, the streaks of the overlapping part of the outer skin stainless steel remain lightly.

TC Type

It is a cladding tube made by carbon thin steel pipe (inner pipe) for machine structural use, with thin stainless steel band covered on the outside and argon arc welded. The appearance is finished the same as stainless steel solid pipe.

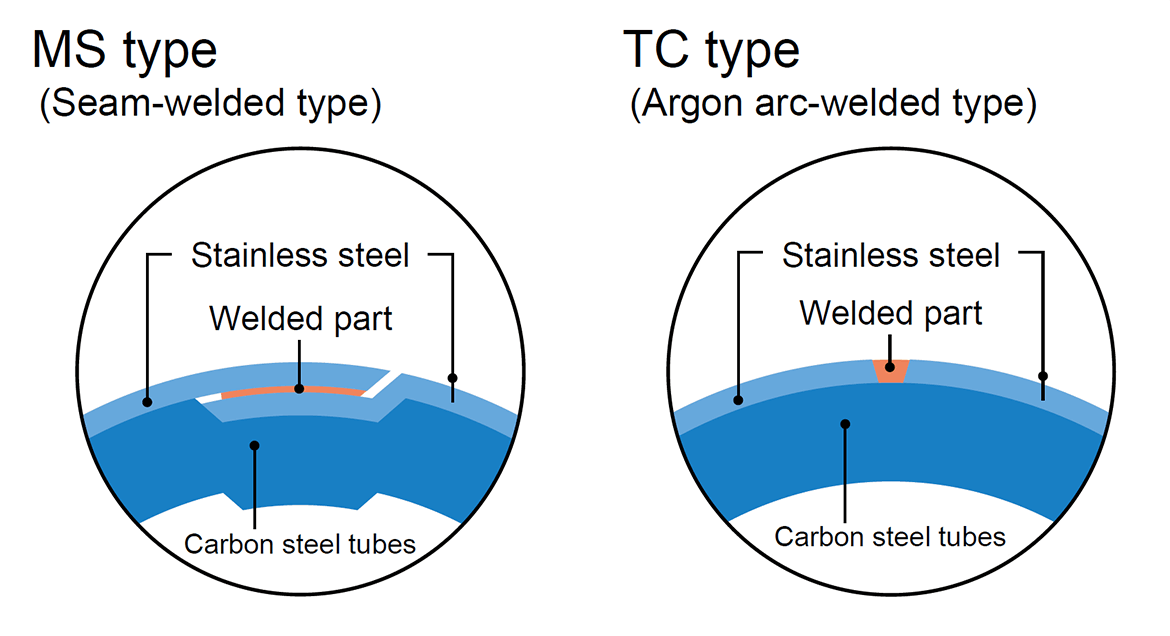

Structure

Structure

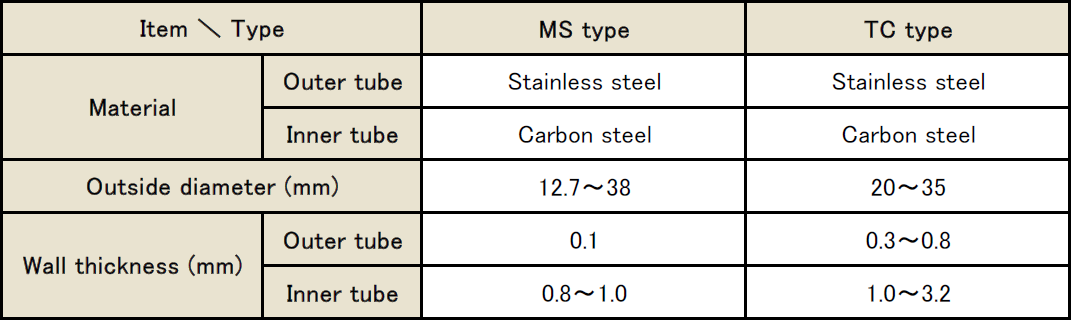

Product Range

Product Range

Product Size

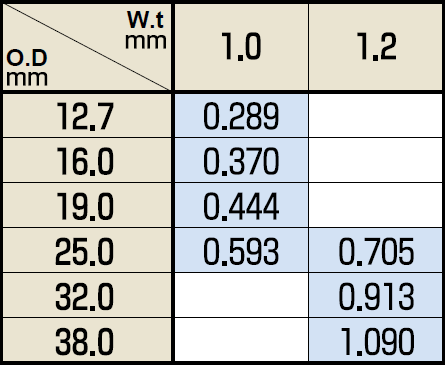

  • MS type

    (Unit:kg/m)
    MS type

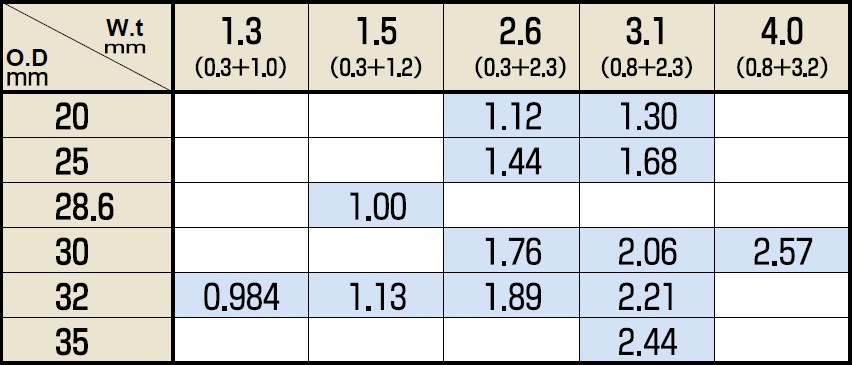

  • TC type

    (Unit:kg/m)
    TC type

A figure in this table represents an approxlmate weight(kg/m) using the above material.

  • - The standard length is 3.65m or 4m.
  • - Please inquire about any size not listed.

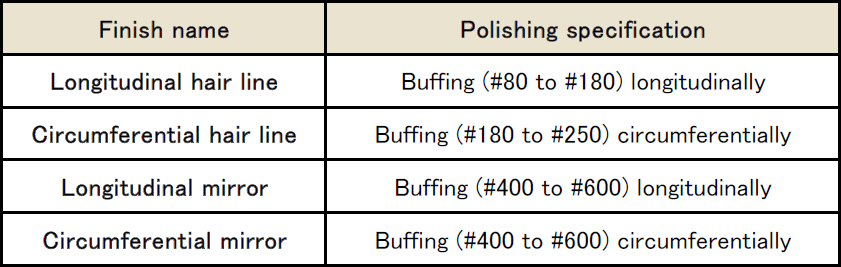

Surface Polishing

Surface Polishing

Dimensional Tolerance

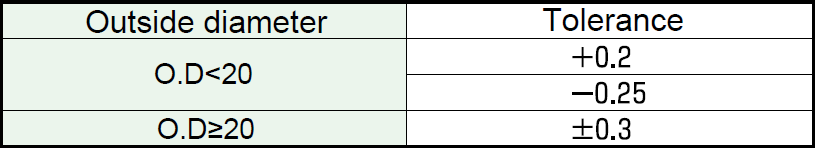

  • Tolerances on outside diameter

    (Unit:mm)
    Tolerances on outside diameter

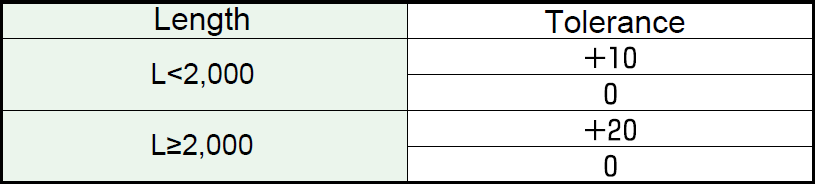

  • Tolerances on Length

    (Unit:mm)
    Tolerances on Length

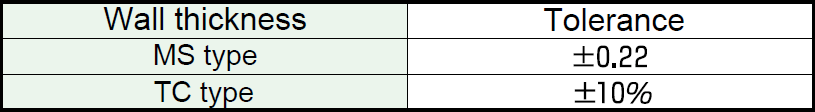

  • Tolerances on wall thickness

    (Unit:mm)
    Tolerances on wall thickness
  • Tolerances on Straightness

    (Unit:mm)
    Tolerances on Straightness

Examples

  • Train Handrails
    Train Handrails
  • Clothe-Drying Poles
    Clothe-Drying Poles
  • Bicycle Handrails
    Bicycle Handrails
  • Closet Rails
    Closet Rails
