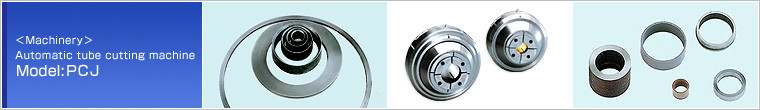

Model:PCJ
This is cutting machine of the work rotary type.
Cutting chip does not send out for the disc cutting, it can reduce the material loss, and the production efficiency improves.
| Item | Processing method | Tool | Process | Processing form | |
|---|---|---|---|---|---|
| Both side chamfering | One side chamfering | ||||
| Tube Cutting | Work Rotated | Disc | ○ | × |  |
PCJ Series(Standard Arrangement)
| Item ＼ Model | PCJ-83N2 | PCJ-140 | PCJ-180 | ||
|---|---|---|---|---|---|
| Cutting Size | Tube O.D | 30mm～76.3mm | 60mm～140mm | 100mm～180mm | |
| Tube Thickness | Max t6mm | Max t10mm | Max t10mm | ||
| Length | Max 100mm L | Max 300mm L | Max 500mm L | ||
| Spindle R.P.M | 155～455r.p.m. Inverter |
110～400r.p.m. Variable Speed Gear |
84～355r.p.m. Variable Speed Gear |
||
| Motors | Main Spindle | 3.7kw 6P x 1 | 5.5kw 6P x 1 | 11kw 6P x 1 | |
| Feeder | 0.75kw 4P x 1 | 0.75kw 4P x 1 | 0.75kw 4P x 1 | ||
| Hydraulic | 2.2kw 4P x 1 | 2.2kw 4P x 1 | 2.2kw 4P x 1 | ||
| Dimensions | Main Body | 1,900mm(overall length) x 1,600mm(width) | |||
| Weight | Main Body | 1,800kgs | 2,300kgs | 2,800kgs | |
| Pressure | Hydraulic | Chuck | 1.5Mpa | - | - |
| Slide | 3.5Mpa | 2.0Mpa | 2.0Mpa | ||
| Air | 0.5Mpa | ||||
| Production Speed | φ35 x t6 x 70L 10 sec./pcs |
φ139.8 x t4.5 x 70L 15.5 sec/pcs |
φ165.2 x t5.0 x 70L 18.8 sec/pcs |
||
- Advice is given about the adjustment of voltage.
- Specifications are subject to change without notice.
