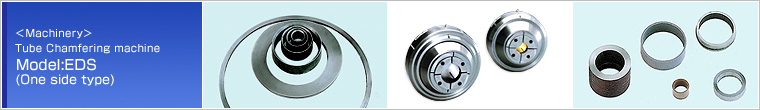

Model:EDS(One side type)
This is chamfering machine of the work fixed type.
The outside chamfering, inside chamfering, facing process and it cutting one side of the tube in the semi-automatic operation.
| Item |
Processing method |
Tool |
Processing form |
| One side chamfering machine |
Work fixed |
Throw-away tool |
 |
EDS Series(Standard Arrangement)
| Item / Model No. |
EDS-65 |
EDS-83 |
EDS-140 |
| Work |
O.D |
15mm～65mm |
20mm～83mm |
60mm～140mm |
| Thickness |
t 3.7mm Max. |
t 5.0mm Max. |
| Length |
100mm≤ |
250mm≤ |
| Spindle R.P.M |
350～1,000r.p.m |
80～350r.p.m |
| Motor |
2.2kw x 1unit |
3.7kw x 1unit |
| Dimensions |
1,200mm x 550mm |
1,100mm x 600mm |
| Weight |
300kgs |
500kgs |
| Air Pressure |
0.5Mpa |
0.5Mpa |
| Production Speed |
6pcs～10pcs/min |
5pcs～8pcs/min |
- Advice is given about adjustment of voltage
- Specifications are subject to change without notice
