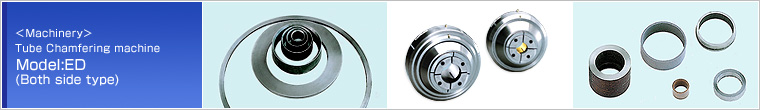

Model:ED(Both side type)
This is chamfering machine of the work fixed type.
The outside chamfering, inside chamfering, facing process and it cutting both side of the tube in the automatic operation.
The automation line is possible by the connection of the tube cutting machine and the tube chamfering machine.
| Item |
Processing method |
Tool |
Processing form |
| Both side chamfering machine |
Work fixed |
Throw-away tool |
 |
ED Series(Standard Arrangement)
| Item ＼ Model |
ED-65 |
ED-83 |
| Work |
O.D |
30mm～65mm |
30mm～83mm |
| Thickness |
t 3.5mm Max |
t 5.0mm Max |
| Length |
250～1,000mm |
300～1,000mm |
| Adopted Vice |
Up and Down |
Up and Down |
| Spindle R.P.M |
700～1,600r.p.m |
600～1,000r.p.m |
| Motor |
1.5kw x 2unit |
3.7kw x 2unit |
| Tool |
Throw-away tool |
| Pipe I.D 10mm～30mm(Use of high speed tool byte) |
| Dimensions |
900mm x 3,000mm |
| Weight |
1,200kgs |
| Air Pressure |
0.5Mpa |
| Production Speed |
6pcs～8pcs/min |
| Item ＼ Model |
ED-140 |
ED-180 |
| Work |
O.D |
60mm～140mm |
60mm～180mm |
| Thickness |
t 5.0mm Max. |
| Length |
100～500mm |
| Adopted Vice |
Right and Left |
| Spindle R.P.M |
125～500r.p.m |
| Motor |
3.7KW x 2unit |
| Tool |
Throw-away tool |
| Dimensions |
3,000mm x 2,600mm |
| Weight |
2,500kgs |
| Air Pressure |
0.5Mpa |
| Production Speed |
3pcs～5pcs/min |
- Advice is given about adjustment of voltage
- Specifications are subject to change without notice
